🔰 Uses

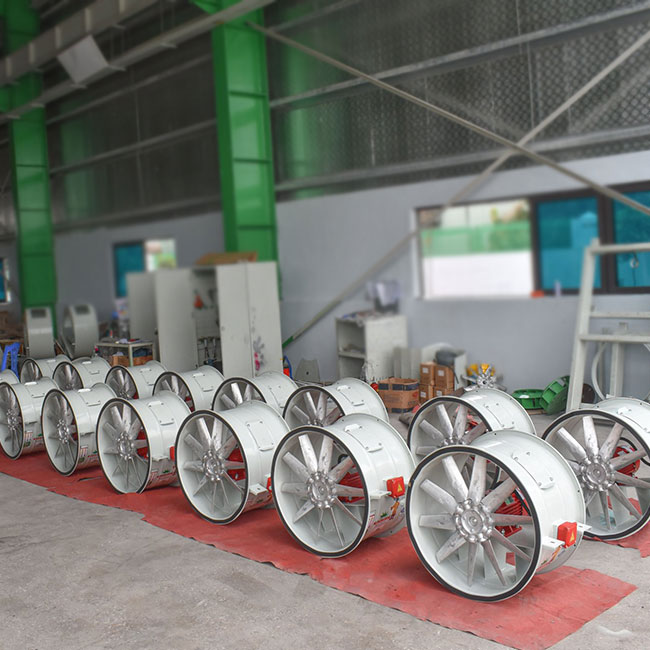

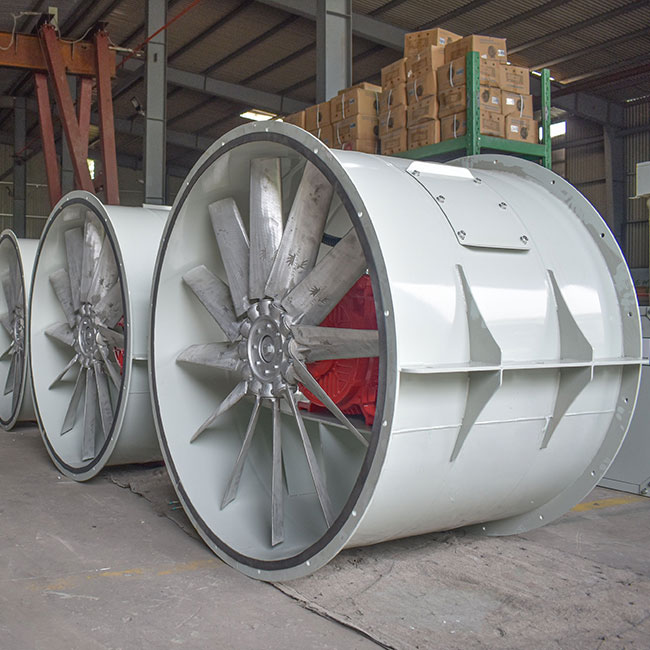

👉 SAD-CANo axial fan is used to extract smoke for long ducts requiring high pressure
👉 Used for industries: food processing, metallurgy, minerals.
👉 Suction tunnels, kilns, cement plants, thermal power plants…
🔰 Product Features
👉 The propeller can adjust the angle of inclination to increase or decrease the flow, pressure (This propeller design may vary depending on the fan model).
👉 Large flow, high-pressure, high efficiency, energy saving, low noise.

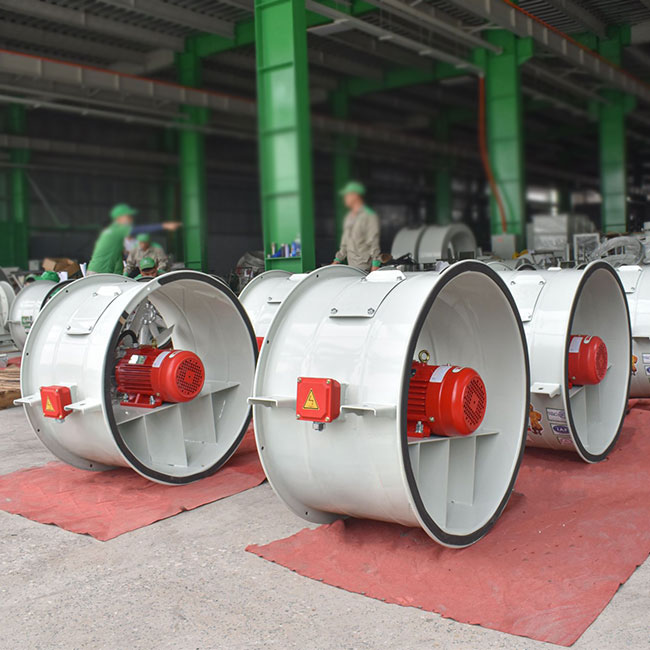

👉 Direct drive axial fan, large flow, strong suction.
👉The fan can be fitted with conventional or fireproof motors, heat resistant from 2500C to 3000C for 2 hours of POWER, ENERTECH, TOAN PHAT, ABB, SIMENS,…
👉Material: The propeller and wheel hub are made of aluminum alloy, fan body is made of steel or stainless steel.
🔰 Specifications
No. |
Model |
Power (kW) |
Speed (Pole) |
Voltage(V) |
Air Flow (m3/h) |
Pressures (Pa) |
1 |
SAD-CA3 |
1.1 |
2P |
380 |
500-800 |
200-350 |
2 |
SAD-CA4 |
2.2 |
2P |
380 |
3200-4500 |
220-450 |
3 |
SAD-CA5 |
3 |
2P |
380 |
5500-10000 |
250-550 |
4 |
SAD-CA6 |
5.5 |
2P |
380 |
10000-18000 |
250-700 |
5 |
SAD-CA7 |
11 |
2P |
380 |
17000-24000 |
280-850 |
🔰 Dimension
Model |
D |
D1 |
L |
SAD-CA3 |
300 |
350 |
320 |
SAD-CA4 |
400 |
450 |
380 |
SAD-CA5 |
500 |
570 |
440 |
SAD-CA6 |
600 |
670 |
480 |
SAD-CA7 |
700 |
770 |
540 |
SYSTEM FAN GROUP
Specifications may change to meet your needs. Contact System Fan for advice and specific quotation.
