How to Select the Right Centrifugal Fan for Your Industry

March 27, 2025

TABLE OF CONTENTS

Choosing the right centrifugal fan is crucial for optimizing performance, ensuring worker safety, reducing energy costs, and maintaining long-term durability in industrial operations. Whether you’re in manufacturing, HVAC, food processing, or chemical production, selecting the right fan requires a clear understanding of your environment, airflow requirements, and system specifications.

If you’re wondering how to choose a centrifugal fan that fits your specific needs, this article is your go-to centrifugal fan selection guide. We’ll walk you through all the essential factors from airflow and pressure to temperature and installation space to help you make an informed, effective decision for your facility.

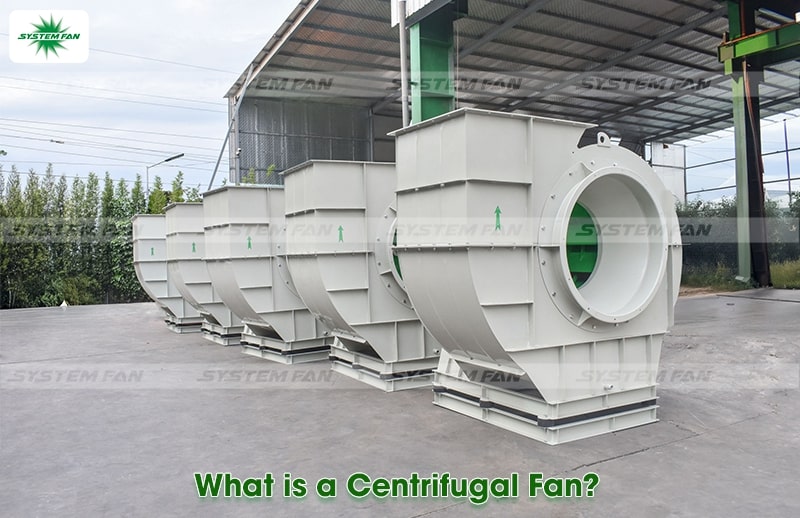

What is a Centrifugal Fan?

A centrifugal fan (also known as a blower) is a mechanical device that moves air or gas using centrifugal force. It works by drawing air into the fan hub and pushing it outward through the impeller
blades at a 90-degree angle from the intake direction.

Key Components:

Impeller: Rotating blades that generate airflow.
Housing (Scroll Casing): Directs airflow and protects the impeller.
Motor: Powers the fan, which can be directly driven or belt-driven.
Inlet and Outlet: Where air enters and exits the fan.

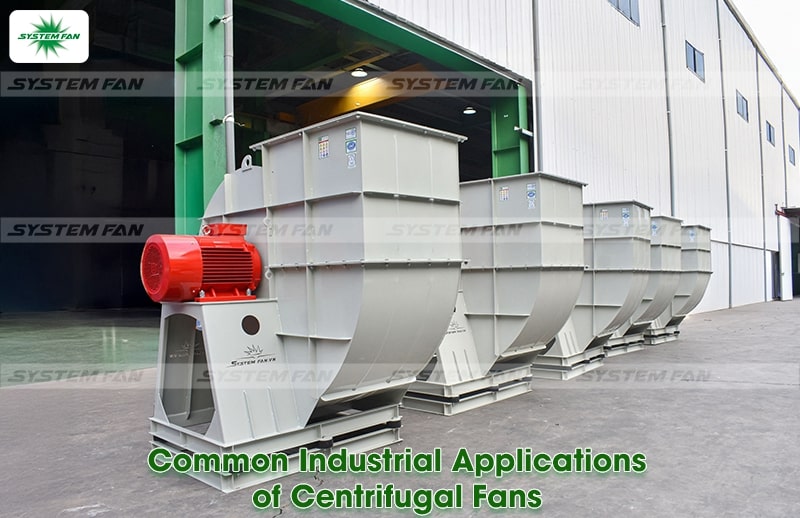

Common Industrial Applications of Centrifugal Fans

Centrifugal fans are widely used across industries due to their ability to handle high pressure and operate in challenging environments. Typical applications include:

Dust collection in woodworking, cement, and textile factories
Exhaust systems in chemical and pharmaceutical plants
Cooling systems for electrical rooms and furnaces
Ventilation in manufacturing plants and warehouses
Fume extraction and air purification systems

How to Choose the Right Centrifugal Fan: Key Factors

1. Determine Airflow Requirements (CFM or m³/h)

Measure or calculate the volume of air that needs to be moved per minute/hour. This depends on room size, the number of air changes required, and process needs.

Tip: Oversized fans waste energy. Undersized fans reduce system performance.

2. Know Your Static Pressure (Pa)

Static pressure is the resistance in your ductwork or system. Fans must overcome this pressure to ensure smooth airflow.

Low static pressure: Suitable for short ducts or open areas
High static pressure: Needed for filters, long ducts, or multi-branch systems

3. Identify the Type of Air Being Handled

Different fans are designed for different air qualities:

Type of Air	Recommended Fan Design
Clean air	Standard mild steel fans
Dusty air	Backward curved impeller with dust-tight casing
Corrosive gases	Stainless steel or coated fans
Hot air	High-temperature fans with insulated motor housing

4. Consider Temperature and Working Environment

The operating environment plays a crucial role in determining the right centrifugal fan for your application. Harsh conditions can significantly impact fan performance, efficiency, and lifespan if not properly accounted
for.

If your facility deals with hot air (above 100°C), high humidity, or corrosive gases, your fan must be engineered to withstand these challenges. In such cases, consider the following:

Heat-Resistant Fans:
Designed with materials and insulation that can tolerate elevated temperatures without deformation or loss of performance. These fans are ideal for exhaust systems near furnaces, kilns, or boilers.
Explosion-Proof Motors:
Required in environments with flammable gases or dust particles. These motors are enclosed and sealed to prevent internal sparks from igniting the surrounding atmosphere, ensuring compliance with international safety
standards (e.g., ATEX, IECEx).
Sealed Bearings and Special Coatings:
Bearings must be sealed to prevent the ingress of moisture or corrosive particles. Additionally, fan housings should be coated with anti-corrosive materials (such as epoxy, powder coating, or stainless steel) to resist
degradation in chemical or saline environments.

Pro Tip: Always inform your supplier about the specific environmental conditions—temperature, humidity level, type of gas, or dust—so they can recommend or customize the most suitable fan configuration.

5. Select the Right Drive Type: Direct vs Belt Drive

Feature	Direct Drive	Belt Drive
Compact design	✅	❌
Adjustable speed	❌	✅
Maintenance needs	Low	Medium (belt replacement)
Suitable for hot/dusty air	❌	✅

6. Check Installation Space

When considering how to choose a centrifugal fan, one often overlooked but critical factor is the installation space. Evaluating the physical layout of your facility helps avoid operational challenges and costly redesigns later on.

If space is limited, the centrifugal fan selection guide recommends choosing compact, direct-drive models. These are ideal for tight spaces such as mechanical rooms, wall-mounted systems, or small-scale ventilation setups. Their simplified structure makes installation and integration much easier.

For larger industrial systems, make sure the space allows for:

Proper Duct Connections:Ensure there is adequate space for smooth airflow into and out of the fan, including straight duct runs, flanges, and fittings. Poor ducting can reduce performance and increase system resistance.
Maintenance Access:Fans require regular inspection, cleaning, and servicing. Leave enough clearance around the unit so that technicians can safely access the impeller, motor, and bearings. Neglecting maintenance space may lead to costly
downtime in the future.
Vibration Isolators (if needed):In high-performance or large-capacity systems, vibration isolators or dampers may be required. These components absorb mechanical vibrations, reducing stress on structures and increasing operational stability. Be sure
to allocate space for their installation.

Centrifugal fan selection guide tip: Always consult with your engineering team or equipment supplier to ensure the selected fan can be properly integrated into your system layout—without compromising performance or serviceability.

7. Focus on Energy Efficiency

Energy accounts for a large portion of operating costs. Choose fans that offer:

High-efficiency impeller designs
Variable frequency drives (VFDs) for speed control
Optimized motor power (no oversizing)

Common Mistakes to Avoid

Choosing based on size alone, not based on airflow/pressure
Ignoring the type of air and environmental factors
Forgetting future scalability or flexibility
Underestimating noise levels in closed environments

Customization Options Available

At System Fan, we offer:

We manufacture centrifugal fans according to customer requirements. This ensures that the fan meets the needs of your industry. Contact System Fan for advice and specific quotes.

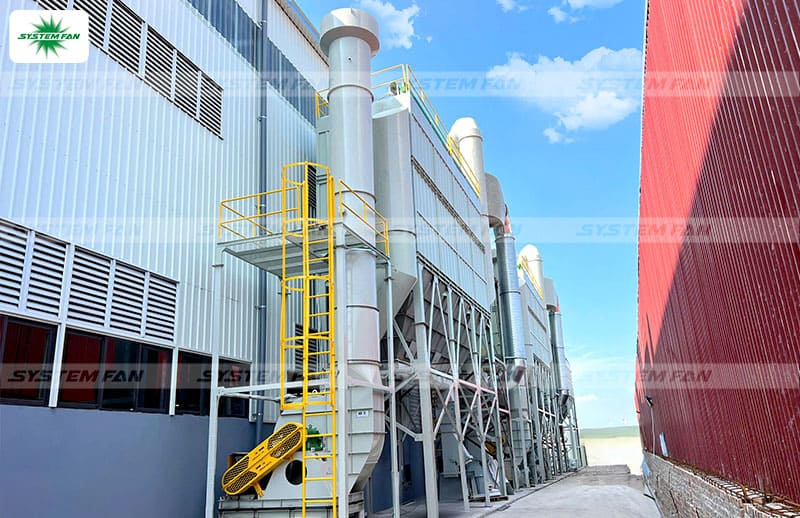

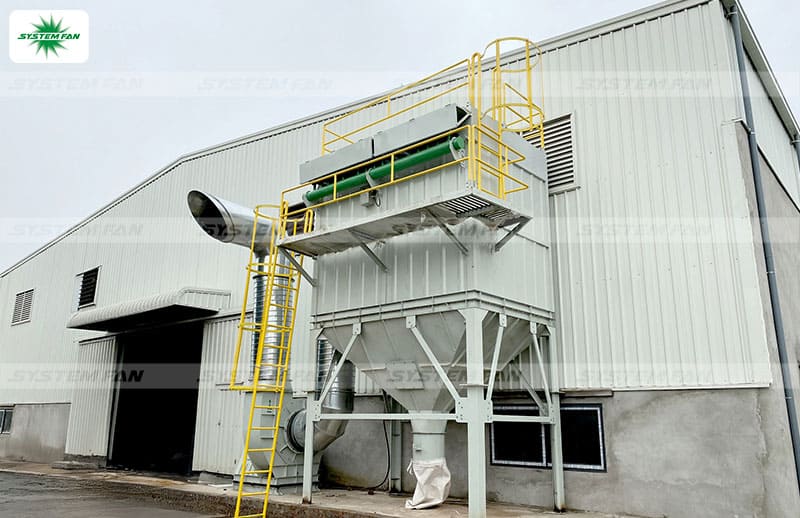

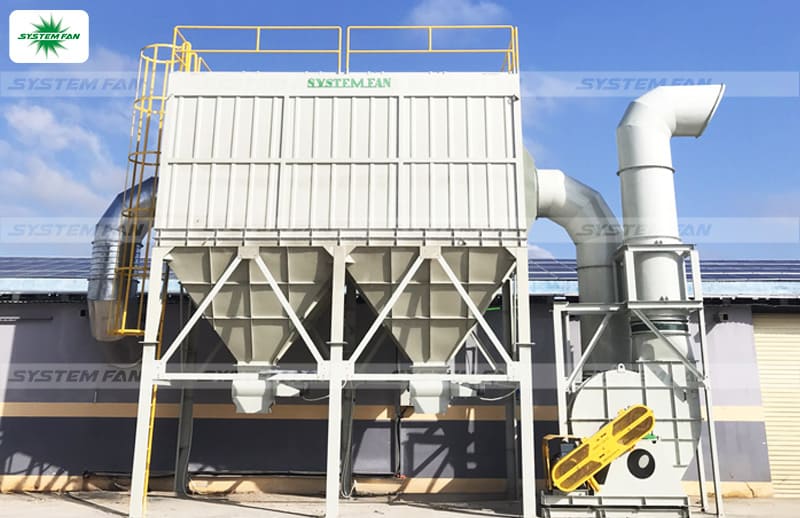

Case Study: Fan Selection for a Woodworking Factory

System Fan manufactures and installs wood dust extraction systems for many factories in Vietnam. Here are some typical projects:

Conclusion

Choosing the right centrifugal fan isn’t just about airflow—it’s about matching performance to your unique industrial needs. By considering airflow, static pressure, air type, temperature, drive type, and energy
efficiency, you ensure optimal operation, lower maintenance, and long-term cost savings.
